Case Study · Residential Solar + Battery · Whole-Home Backup
14.25kW Residential Solar Installation with Sigenergy Battery & Whole-Home Backup in Loughton, Essex
14.25 kWpSystem Size
12 kWInverter Capacity
27.12 kWhBattery
10,705 kWhAnnual Output
69%Energy Offset
4Y 7MPayback
The Opportunity: Solar for a High-Consumption Home
This detached family home on Alderton Hill in Loughton, Essex (IG10) — one of the most sought-after residential streets on the edge of Epping Forest — is a high-consumption household using 15,500 kWh of electricity per year, more than three times the UK average. With annual electricity bills exceeding £5,000 and energy prices rising year on year, the homeowner approached Sol4r Energy to explore how solar could transform their running costs and provide long-term energy independence.
The property's generous roof offered two usable aspects — with enough space for 30 premium all-black AIKO 475W panels across both faces. But this wasn't just about panels on a roof. The homeowner wanted a complete energy solution: maximum generation, intelligent battery storage to capture every kilowatt-hour, and whole-home backup power for peace of mind during grid outages — particularly important for a family home in a semi-rural Essex location.

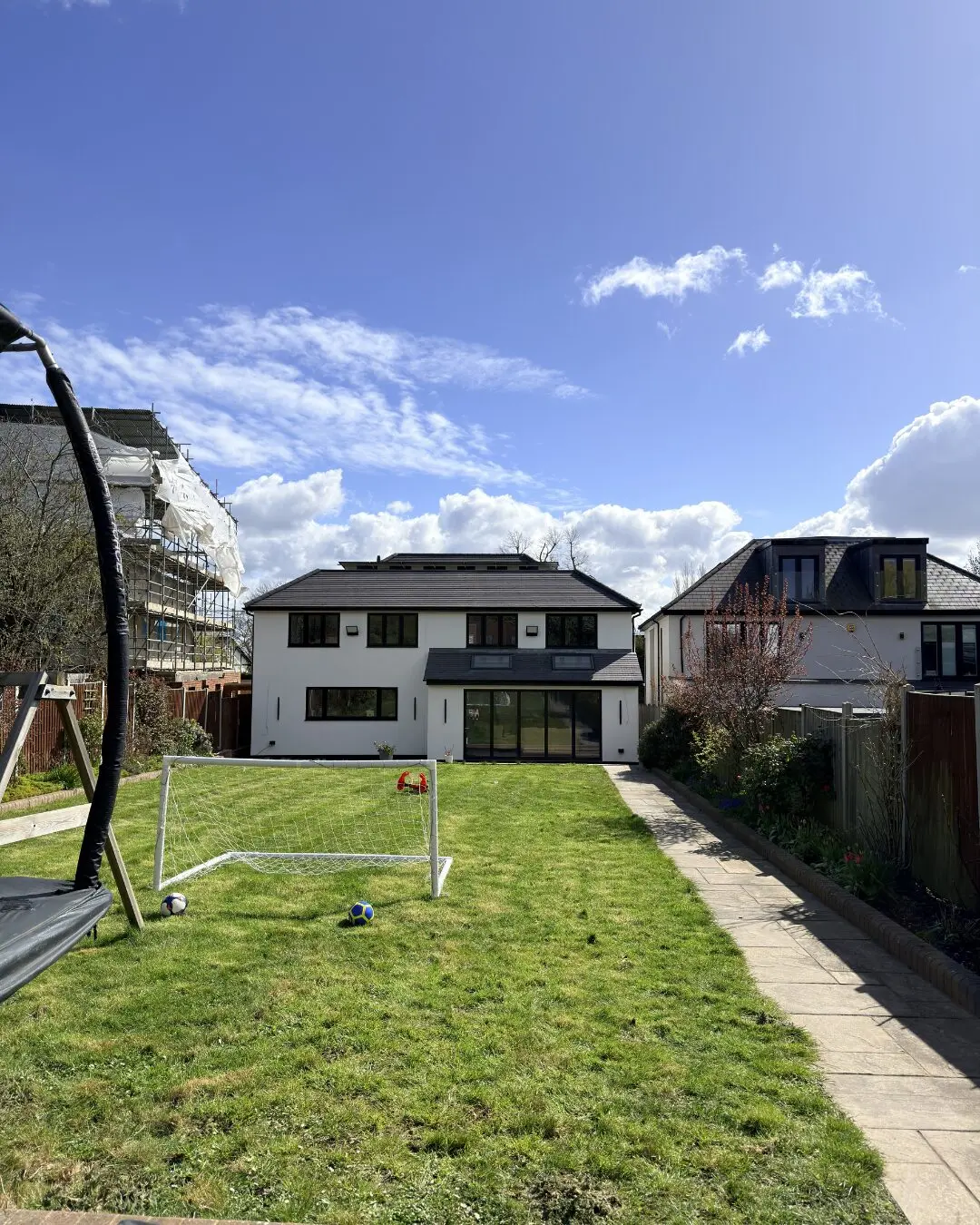

The property on Alderton Hill, Loughton — 30 AIKO 475W all-black panels installed across dual-aspect roof by Sol4r Energy.
Sol4r Energy designed a 14.25 kWp system paired with 27.12 kWh of Sigenergy battery storage, a 12 kW three-phase hybrid inverter, and the Sigenergy HomeMax Gateway — providing seamless whole-home backup with zero-millisecond switchover. Using PVWatts v8 performance modelling, the system was engineered to offset 69% of the household's total electricity demand, deliver £4,623 in annual savings, and pay for itself in just 4 years and 7 months. Net savings over 25 years are projected at £246,581.
Before & After: The Transformation
❌ Before Sol4r Energy
- 100% reliant on the grid — annual bills exceeding £5,050
- 15,500 kWh consumed per year with zero on-site generation
- No battery storage or backup power
- Fully exposed to rising energy prices — 7%+ annual increases
- No protection during grid outages
- No way to reduce the household's carbon footprint
✅ After Sol4r Energy
- 69% energy offset — generating 10,705 kWh per year on-site
- 27.12 kWh Sigenergy battery maximising overnight and peak usage
- Whole-home backup via Sigenergy HomeMax Gateway — zero switchover
- £4,623 annual savings from day one
- 3 tonnes of CO₂ eliminated every year
- System pays for itself in 4 years 7 months — then generates pure savings
Installation Photos — Loughton, Essex
30 × AIKO 475W all-black solar panels across dual-aspect roof, Sigenergy SigenStor EC 12.0TP three-phase hybrid inverter, 3 × SigenStor BAT 10.0 battery modules (27.12 kWh) & HomeMax Gateway for whole-home backup — all installed by Sol4r Energy's in-house team at a detached home in Loughton, Essex.
Project Overview — Residential Solar, Loughton, Essex
| Detail | Information |
|---|---|
| Location | Alderton Hill, Loughton, IG10 3JB — Essex |
| Property type | Detached residential property — high-consumption household |
| Roof orientation | Dual-aspect — Group 1: 18 panels at 140° from South, 20° tilt · Group 2: 12 panels at 45° from South, 25° tilt |
| Annual consumption | 15,500 kWh |
| Tariff recommendation | Octopus Intelligent — Day 31p (5am–11pm), Night 7p (11pm–5am) |
| Export tariff (SEG) | Smart Export Guarantee — 15p/kWh all day |
| Performance calculator | PVWatts v8 |
| MCS certified | Yes — all systems registered, certificates issued on completion |
Technical Specifications — Solar, Battery & Whole-Home Backup
Every component was selected for premium performance, whole-home integration, and long-term reliability. The Sigenergy ecosystem — inverter, batteries, and gateway — operates as one intelligent system, delivering seamless energy management and full backup capability:
| Component | Product | Specification |
|---|---|---|
| Solar Panels | 30 × AIKO 475W | AIKO-A475-MCE54Mb · All-black aesthetic · 14.25 kWp total · 25yr product & 30yr performance warranty |
| Hybrid Inverter | 1 × SigenStor EC 12.0TP | 12 kW three-phase hybrid · IP66 rated · EMS built-in · 10yr warranty |
| Battery Storage | 3 × SigenStor BAT 10.0 | 27.12 kWh total · LiFePO4 · 314Ah cells · 10,000 cycles · 100% depth of discharge · 10yr warranty |
| Backup Gateway | 1 × HomeMax TP | Sigenergy whole-home backup · 0ms switchover · three-phase · supports generator & EV charger |
| Power Sensor | 1 × TP-DH | Three-phase energy meter · real-time consumption monitoring |
| Additional | Birds protection, tilt racks | 30-panel tilt rack system for optimal angle · full birds protection mesh |
Dual-Aspect Roof Design — All-Day Generation
The property's roof offered two usable aspects, and Sol4r Energy designed the system to utilise both — spreading 30 panels across two groups to extend generation across the full day:
| Roof Aspect | Orientation | Panels | Peak Generation Period |
|---|---|---|---|
| Group 1 | 140° from South · 20° tilt | 18 panels (8.55 kWp) | Morning through early afternoon — captures the strongest midday sun |
| Group 2 | 45° from South · 25° tilt | 12 panels (5.70 kWp) | Late morning through afternoon — extends the generation window |
By utilising both aspects, the system produces a broader generation curve than a single-aspect installation would achieve. Combined with the 27.12 kWh Sigenergy battery, excess solar from peak generation hours is stored and discharged during the evening and overnight — when electricity is most expensive. The result is a system that works for the household around the clock, not just when the sun is shining.
Energy Performance & Self-Consumption
| Performance Metric | Result |
|---|---|
| Total installed capacity | 14.25 kWp |
| Annual solar generation | 10,705 kWh |
| Annual household consumption | 15,500 kWh |
| Annual consumption offset | 69% — system produces over two-thirds of the household's demand |
| kWh/kWp yield | 751.2 kWh/kWp |
| Shade factor | 1.000 — zero shading losses |
| Self-consumption — solar only | 4,837.71 kWh (31.21% self-sufficiency) |
| Self-consumption — solar + battery | 5,369.81 kWh (35.0% self-sufficiency) |
| Total energy discharged from battery per year | 19,184.40 kWh |
| Usable battery capacity | 26.28 kWh |
With 15,500 kWh of annual demand and 10,705 kWh of solar generation, the system offsets 69% of total household electricity consumption. The 27.12 kWh Sigenergy battery increases self-sufficiency from 31% (solar only) to 35% with storage, and — critically — enables the household to exploit the 24p/kWh differential between Octopus Intelligent's night rate (7p) and day rate (31p) through intelligent tariff arbitrage. For homeowners in Loughton, Chigwell, Buckhurst Hill, Woodford, and across Essex, these results demonstrate what a well-designed residential solar system can achieve.
Monthly Savings Breakdown — Year 1
Every month of the year, this system delivers meaningful bill reductions — saving between £306 and £468 per month, with summer months actually putting the household into credit:
| Month | Solar Gen | Imported | Exported | Export Credit | Old Bill | New Bill | Saving |
|---|---|---|---|---|---|---|---|
| January | 236 kWh | 1,410 kWh | 0 kWh | £0 | £502 | £184 | £318 |
| February | 366 kWh | 1,237 kWh | 9 kWh | £1 | £489 | £153 | £336 |
| March | 714 kWh | 1,023 kWh | 142 kWh | £21 | £487 | £77 | £410 |
| April | 1,174 kWh | 754 kWh | 587 kWh | £88 | £416 | -£16 | £432 |
| May | 1,626 kWh | 602 kWh | 1,044 kWh | £157 | £373 | -£95 | £468 |
| June | 1,555 kWh | 547 kWh | 982 kWh | £147 | £355 | -£91 | £445 |
| July | 1,625 kWh | 525 kWh | 1,068 kWh | £160 | £344 | -£105 | £449 |
| August | 1,406 kWh | 554 kWh | 893 kWh | £134 | £338 | -£76 | £414 |
| September | 934 kWh | 686 kWh | 448 kWh | £67 | £369 | £0 | £369 |
| October | 578 kWh | 916 kWh | 162 kWh | £24 | £411 | £64 | £346 |
| November | 309 kWh | 1,215 kWh | 2 kWh | £0 | £466 | £137 | £329 |
| December | 183 kWh | 1,452 kWh | 0 kWh | £0 | £501 | £195 | £306 |
| ANNUAL TOTAL | 10,705 kWh | 10,921 kWh | 5,337 kWh | £799 | £5,050 | £428 | £4,623 saved |
Projections assume 7% annual energy price increase. Utility savings based on switch from Flux to Octopus Intelligent tariff. From April through August, the household runs in net credit — earning money from the grid rather than paying it. The 30 kWh battery with tariff optimisation (charging at 7p overnight, discharging at 31p during the day) drives the extraordinary winter savings that a solar-only system couldn't achieve.
Financial Returns — Residential Solar Investment
£4,623Year 1 Bill Savings
4Y 7MPayback Period
£270,171Lifetime Bill Savings
£246,581Net 25-Year Savings
1,045%Total ROI
25.6%Annual Rate of Return
With energy prices projected to rise by 7% annually, this residential solar system pays for itself in under five years — then delivers over £246,000 in net savings across the remaining system lifetime. By 2035, annual savings are projected to reach £7,997, and by 2050 the system will be saving £21,080 per year. The financial case is compelling: a 1,045% total return on investment and 25.6% annual rate of return — outperforming virtually any other home improvement or capital investment. With 0% VAT on domestic solar installations, the £23,590 purchase price includes no hidden costs. For homeowners across Loughton, Chigwell, Buckhurst Hill, Woodford, Epping Forest, and the wider Essex and London area, residential solar with battery storage is the single most impactful financial decision for your home. Book a free property survey to find out what solar could save you.
Battery & Whole-Home Backup: The Sigenergy Advantage
27 kWh battery + HomeMax Gateway = complete energy independence
This isn't just a battery — it's a complete home energy management system. The Sigenergy ecosystem integrates inverter, batteries, and backup gateway into one intelligent platform that protects, powers, and saves.
Whole-Home Backup
The HomeMax Gateway provides 0ms switchover — the entire house stays powered during grid outages. Unlike competitors that only back up selected circuits, every socket, light, and appliance keeps running seamlessly.
Intelligent Tariff Arbitrage
Charges at 7p/kWh overnight on Octopus Intelligent, then powers the home at 31p/kWh during the day. That 24p/kWh differential, multiplied across 19,184 kWh of annual battery throughput, drives massive savings.
35% Grid Independence
Solar alone gives 31% self-sufficiency. The 27 kWh battery lifts this to 35% — shifting stored solar and cheap overnight electricity into the expensive daytime hours when it's needed most.
10,000-Cycle LiFePO4
Premium 314Ah LiFePO4 cells rated for 10,000 charge cycles and 100% depth of discharge. That's 27+ years of daily cycling — the battery will outlast the warranty by decades.
EV-Charger Ready
The HomeMax Gateway supports up to 2 × 22kW Sigenergy EV chargers with solar boost charging — future-proofing the home for electric vehicles with minimal additional cost.
Compounding Savings
With energy costs rising 7% annually, savings compound dramatically. By 2035, this system saves £7,997/year. By 2050, £21,080/year — totalling £246,581 in net savings over 25 years.
Environmental Impact
3 tonnesCO₂ saved per year
523 treesEquivalent over lifetime
81,419 kmCar distance avoided
58 flightsLong-haul avoided
At 3 tonnes of CO₂ eliminated per year, this installation makes a real and measurable environmental contribution. Over the system's lifetime, that's the equivalent of planting 523 trees or removing a car from the road for over 80,000 kilometres. For homeowners who care about their environmental impact as well as their finances, solar delivers on both fronts. Sol4r Energy installs residential solar systems across Loughton, Chigwell, Buckhurst Hill, Woodford, Epping Forest, Essex, and nationwide.
Why This Homeowner Chose Sol4r Energy
🏆 MCS-Certified, Award-Winning
UK Enterprise Award winner and MCS-certified (registration NAP-68781) — the certification needed for the Smart Export Guarantee, 0% VAT, and all manufacturer warranties. Trusted by homeowners across Essex and the UK.
🔬 Professional System Design
Using PVWatts v8 performance modelling, Sol4r Energy designed a dual-aspect system optimised for this specific property — accounting for orientation, tilt, shading, and consumption patterns to maximise every panel's output.
📋 Complete End-to-End Service
From free survey to DNO application, three-phase wiring, MCS commissioning, tariff optimisation advice, and ongoing maintenance — Sol4r Energy handles everything. One team, one contact, no subcontractors.
Certifications & Warranties Included
MCS Commissioning Certificate (NAP-68781)
25-Year AIKO Panel Product Warranty
HIES Consumer Protection Warranty
30-Year Panel Performance Warranty
NAPIT Building Regulation Certificate
10-Year Sigenergy Inverter Warranty
Electrical Safety Certificate (EICR)
10-Year Sigenergy Battery Warranty
2-Year Workmanship Warranty
2-Year Annual Maintenance Plan
All certifications issued on completion. Sol4r Energy is HIES-registered, NAPIT-approved, and TrustMark-endorsed — the highest level of consumer protection for solar installations in the UK. 0% VAT applies to all domestic solar installations.
