117.5kW Commercial Solar Installation at Springboig Care Centre in Glasgow
The Opportunity: Solar Energy for Care Homes
Care homes are among the most energy-intensive buildings in the UK. Operating 24 hours a day, 365 days a year, they run heating, lighting, laundry, catering, medical equipment, and hot water systems around the clock — creating electricity bills that place enormous pressure on already tight operational budgets. For care home operators across Glasgow, Scotland and the wider UK, commercial solar represents one of the most effective ways to slash overheads and redirect savings towards resident care.
This residential care home in Springboig, Glasgow (G32) — located in the East End of Glasgow between Baillieston and Shettleston — presented an ideal opportunity for a large-scale solar installation. With a substantial multi-aspect roof, high annual electricity consumption of 156,499 kWh, and 24/7 operational demand, the facility was perfectly suited to a system designed for maximum self-consumption.

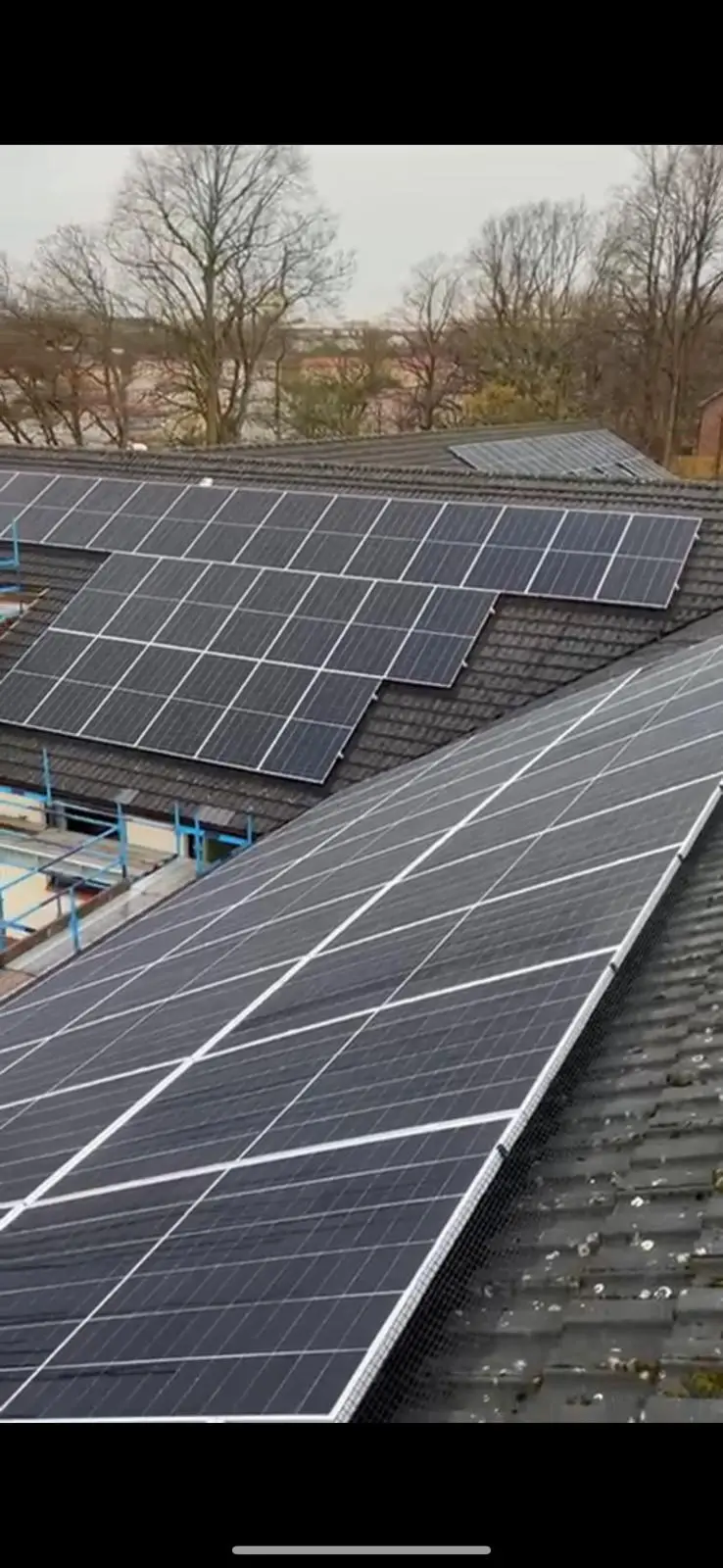

Aerial view — 188 AIKO 625W panels across east, south, and west-facing roof sections at the care home in Springboig, Glasgow.
When the care home management approached Sol4r Energy about installing solar panels, the goal was clear: dramatically reduce the facility's electricity costs, create long-term financial stability for the business, and demonstrate a visible commitment to sustainability — increasingly important in the care sector. Using professional SAM modelling software, Sol4r Energy designed a 117.5 kWp system utilising all three available roof aspects to maximise generation throughout the day, paired with 51.84 kWh of FoxESS battery storage and 90 kW of three-phase hybrid inverter capacity.
The result: a system that offsets 57% of the care home's total electricity demand, achieves 100% self-consumption (virtually nothing is wasted to the grid), and pays for itself in just 3 years and 4 months. With projected net savings of £1,535,419 over 25 years, this is one of the most financially compelling commercial solar installations Sol4r Energy has delivered.
Before & After: The Transformation
❌ Before Sol4r Energy
- 100% reliant on the grid — annual bills exceeding £44,000
- 156,499 kWh consumed per year with zero on-site generation
- No battery backup or energy storage
- Fully exposed to rising energy prices — 7%+ annual increases
- No way to reduce the facility's carbon footprint
- Electricity costs consuming budget that could go towards care
✅ After Sol4r Energy
- 57% energy offset — generating nearly 90,000 kWh per year on-site
- 100% self-consumption — virtually everything generated is used, nothing wasted
- 51.84 kWh FoxESS battery maximising overnight and peak usage
- £27,894 annual savings redirected towards resident care
- 23 tonnes of CO₂ eliminated every year
- System pays for itself in 3 years 4 months — then generates pure savings
Solar Installation Photos – Care Home, Glasgow
188 × AIKO 625W solar panels across east, south, and west-facing roof sections, 3 × FoxESS H3-Pro-30.0 three-phase hybrid inverters & 51.84 kWh FoxESS battery storage — all installed by Sol4r Energy's in-house team at a care home in Springboig, Glasgow.
Project Overview — Commercial Solar at a Care Home, Glasgow
| Detail | Information |
|---|---|
| Location | Springboig, Glasgow, G32 — Scotland |
| Property type | Residential care home — commercial premises, 24/7 operation |
| Roof orientation | Tri-aspect — east (85°), south (5°), and west (95° from South), all at 30° tilt |
| Annual consumption | 156,499 kWh |
| Tariff recommendation | Octopus Intelligent — Day 31p (5am–11pm), Night 7p (11pm–5am) |
| Export tariff (SEG) | Smart Export Guarantee — 15p/kWh all day |
| Performance calculator | System Advisor Model (SAM) 2020.02.29.r2 |
| MCS certified | Yes — all systems registered, certificates issued on completion |
Technical Specifications — Commercial Solar & Battery System
Every component in this 117.5kW commercial solar installation was selected for maximum output, three-phase compatibility, and long-term reliability in a demanding 24/7 care home environment. Sol4r Energy only uses premium solar panels and battery storage systems with comprehensive manufacturer warranties:
| Component | Product | Specification |
|---|---|---|
| Solar Panels | 188 × AIKO 625W | AIKO-A625-MAH72Mw (33mm) · 117.5 kWp total · 30yr product & performance warranty |
| Hybrid Inverters | 3 × FoxESS H3-Pro-30.0 | 90 kW total three-phase hybrid inverter capacity · IP65 rated · 15yr warranty |
| Battery Storage | 18 × FoxESS ECM2900 | 51.84 kWh total · High-voltage lithium · expandable · 10yr warranty |
| Energy Meter | DTSU666 | Three-phase electronic energy meter · real-time monitoring |
| Cabling | 6/10mm high-current cable | Up to 50m cable run included · higher current rating for commercial load |
| Additional | Surge protection, PPE signage, WiFi booster | Full commercial-grade safety and monitoring infrastructure |
Tri-Aspect Roof Design — Maximising All-Day Generation
Unlike a typical installation that uses a single roof face, this care home's roof offered three usable aspects — east, south, and west — all at a 30° tilt. Sol4r Energy designed the system to utilise all three, spreading 188 panels across three groups to maximise generation throughout the entire day:
| Roof Aspect | Orientation | Panels | Peak Generation Period |
|---|---|---|---|
| East-facing array | 85° from South | 65 panels (40.6 kWp) | Morning — captures early sunlight from sunrise through midday |
| South-facing array | 5° from South | 46 panels (28.8 kWp) | Midday — highest intensity solar radiation during peak hours |
| West-facing array | 95° from South | 77 panels (48.1 kWp) | Afternoon — captures late-day generation through to evening |
This tri-aspect approach is particularly valuable for care homes and 24/7 facilities. Rather than concentrating all generation into a few peak hours, the system produces a broader, flatter generation curve that better matches the facility's constant baseload demand. The east array starts generating at sunrise when the night shift is still running and the morning routine begins. The south array peaks at midday when kitchen, laundry, and common areas are at full capacity. The west array continues generating into the late afternoon and evening when demand remains high. The result is 100% self-consumption — virtually every kilowatt-hour generated is used on-site.
Full scaffolding erected during the multi-day commercial installation — Sol4r Energy's in-house team manages all access equipment and safety infrastructure.
Energy Performance & Self-Consumption
| Performance Metric | Result |
|---|---|
| Total installed capacity | 117.5 kWp |
| Annual solar generation | 89,727 kWh |
| Annual facility consumption | 156,499 kWh |
| Annual consumption offset | 57% — system produces over half the facility's total demand |
| kWh/kWp yield | 766.4 kWh/kWp |
| Shade factor | 0.996 — just 0.4% shading losses |
| Self-consumption rate | 100% — virtually everything generated is used on-site |
| Self-sufficiency — solar only | 30.9% |
| Self-sufficiency — solar + battery | 33.5% |
| Annual electricity exported | ~265 kWh — negligible, confirming near-total on-site consumption |
The 100% self-consumption rate is the standout metric here — and it's what makes care homes such compelling candidates for commercial solar. Because the facility consumes electricity around the clock, there's always demand to absorb whatever the panels produce. Unlike a typical business that might export significant surplus during weekends or holidays, a care home never switches off. Every kilowatt-hour generated displaces expensive grid electricity at the full import rate — maximising the financial return and delivering the fastest possible payback. For care homes, hospitals, hotels, and other 24/7 facilities across Glasgow, Edinburgh, Scotland and the wider UK, these results show what's achievable with the right system design.
Monthly Savings Breakdown — Year 1
Every month of the year, this system delivers significant bill reductions — saving between £2,378 and £3,035 per month even in a Scottish climate:
| Month | Solar Gen | Imported | Exported | Export Credit | Old Bill | New Bill | Saving |
|---|---|---|---|---|---|---|---|
| January | 1,661 kWh | 8,692 kWh | 0 kWh | £0 | £4,408 | £1,932 | £2,476 |
| February | 3,444 kWh | 7,649 kWh | 61 kWh | £9 | £4,301 | £1,648 | £2,654 |
| March | 7,389 kWh | 6,421 kWh | 76 kWh | £11 | £4,277 | £1,241 | £3,035 |
| April | 9,994 kWh | 4,671 kWh | 0 kWh | £0 | £3,643 | £786 | £2,857 |
| May | 13,303 kWh | 3,721 kWh | 6 kWh | £1 | £3,248 | £528 | £2,720 |
| June | 13,532 kWh | 3,355 kWh | 0 kWh | £0 | £3,087 | £457 | £2,629 |
| July | 14,055 kWh | 3,245 kWh | 0 kWh | £0 | £2,991 | £412 | £2,579 |
| August | 11,167 kWh | 3,402 kWh | 0 kWh | £0 | £2,931 | £453 | £2,478 |
| September | 7,605 kWh | 4,245 kWh | 0 kWh | £0 | £3,219 | £694 | £2,525 |
| October | 4,334 kWh | 5,968 kWh | 0 kWh | £0 | £3,589 | £1,177 | £2,412 |
| November | 2,152 kWh | 7,771 kWh | 122 kWh | £18 | £4,089 | £1,674 | £2,415 |
| December | 1,091 kWh | 8,990 kWh | 0 kWh | £0 | £4,403 | £2,026 | £2,378 |
| ANNUAL TOTAL | 89,727 kWh | 68,130 kWh | 265 kWh | £39 | £44,186 | £11,828 | £27,894 saved |
Projections assume 7% annual energy price increase. Utility savings based on switch from existing tariff to Octopus Intelligent. Near-zero export confirms 100% on-site self-consumption — the hallmark of a well-sized care home solar system.
Financial Returns — Commercial Solar Investment
With energy prices projected to rise by 7% annually, this commercial solar system at a care home in Glasgow pays for itself in just over three years — then delivers over £1.5 million in net savings across the remaining system lifetime. By 2035, annual savings are projected to reach £48,774, and by 2050 the system will be saving £126,160 per year. The financial case is extraordinary: a 1,567% total return on investment and 34.8% annual rate of return — dwarfing any conventional capital investment. For care home operators, NHS trusts, and healthcare providers across Glasgow, Edinburgh, Scotland and the wider UK looking to reduce their largest operational overheads, commercial solar with battery storage is the single most impactful financial decision they can make. Book a free site survey to find out what solar could save your facility.
Battery Benefits: Why Storage Matters for 24/7 Facilities
Why the battery makes all the difference
The 51.84 kWh FoxESS battery bank doesn't just store solar energy — it ensures the care home maximises every kilowatt-hour generated and minimises expensive grid imports during peak hours.
33.5% Grid Independence
Without batteries, solar-only self-sufficiency would be 30.9%. The 51.84 kWh FoxESS battery lifts this to 33.5% — shifting stored solar into the high-demand overnight and evening hours.
100% Self-Consumption
With 156,499 kWh of annual demand and 89,727 kWh of generation, there's always on-site load to absorb solar output. The battery ensures even brief surpluses are captured rather than exported at lower SEG rates.
Intelligent Tariff Arbitrage
Octopus Intelligent charges the battery at just 7p/kWh overnight, then the care home runs on stored energy during the 31p/kWh daytime rate. That 24p/kWh differential, applied daily, compounds into major savings.
Critical Load Protection
In a care home environment, power continuity matters. The FoxESS hybrid system provides backup capability, helping protect essential equipment during brief grid interruptions.
Night Shift Coverage
The battery bridges the gap between solar generation ending in the evening and the overnight period — powering heating, lighting, and monitoring systems from stored energy rather than peak-rate grid electricity.
Compounding Protection
With energy costs rising 7% annually, this care home's savings compound dramatically. By 2035, annual savings are projected at £48,774. By 2050, £126,160 per year — totalling £1.5M+ in net savings.
Environmental Impact
At 23 tonnes of CO₂ eliminated per year, this is one of the most impactful environmental installations Sol4r Energy has delivered. Over the system's lifetime, that's the equivalent of planting 4,387 trees or taking hundreds of cars off the road. For care home operators, the environmental credentials also support ESG reporting, sustainability expectations, and increasingly important green credentials that residents' families and commissioning bodies look for. Sol4r Energy installs commercial solar systems for care homes, hospitals, businesses, and organisations across Glasgow, Edinburgh, Scotland and nationwide.
Why Care Homes Are Ideal for Commercial Solar
Care homes are uniquely well-suited to solar energy — and this installation demonstrates exactly why. Unlike offices or retail units that sit empty overnight and at weekends, care homes consume electricity around the clock. That constant baseload creates the perfect conditions for solar to deliver maximum value:
24/7 electricity demand means virtually 100% of solar generation is consumed on-site, at the full import rate — no energy is wasted to low-value grid export. High annual consumption (this facility uses 156,499 kWh per year) means even a large system is fully absorbed, delivering the fastest possible payback. Multi-aspect roofs are common on care home buildings, enabling tri-aspect designs like this one that spread generation across the full day. Long operational lifetimes — care homes don't relocate or change use frequently, so the 25-year savings projections are highly reliable.
For care home operators, reducing energy costs directly increases the budget available for resident care, staffing, and facilities. With energy bills projected to exceed £100,000 per year within a decade at current inflation rates, a solar installation that locks in a significant portion of generation at zero marginal cost represents genuine financial security for the business.
Sol4r Energy has direct experience installing solar on care homes, nursing facilities, and healthcare buildings across the UK. We understand the unique requirements: working around vulnerable residents, maintaining access, minimising disruption, and coordinating with facility management teams. If your care home, healthcare facility, or 24/7 commercial premises is considering solar, contact Sol4r Energy or book a free site survey to explore what's achievable.
